Automatic Single Head Crown Capping Machine
Automatic single-head crown corking machine with vibratory crown cap feeder, synchronized starwheel transport, photoelectric cap detection and speed up to 40 bottles per minute.
ISO 9001:2015Ahmedabad, IndiaManufacturer - Exporter

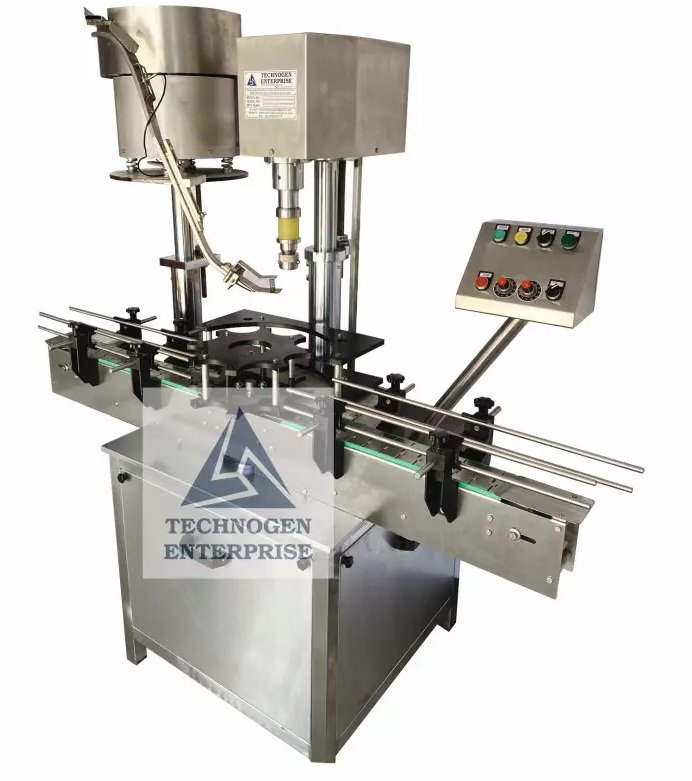

Automatic Single Head Crown Capping MachineMachine image shown for reference. Final configuration is selected against the approved application and production requirement.
01
Machine Overview
The Automatic Single Head Crown Capping Machine from Technogen Enterprise is designed to apply compatible crown cork closures to bottles used in beverage and related packaging operations. Crown capping is a distinct closure-forming process in which a metal crown is mechanically crimped around the appropriate bottle-neck finish.
The machine incorporates an automatic bottle conveyor, synchronized starwheel indexing and a single crown corking head. This arrangement positions each bottle for controlled crown-cap application and transfers the sealed container toward the machine outfeed.
The specified output is approximately 30–40 bottles per minute, depending on bottle diameter and handling conditions. The machine is described for beer, carbonated beverages, sparkling mineral water and compatible fermented beverage packaging.
Closure feeding is performed through a vibratory bowl feeder, which stores and orients crown caps before directing them to the delivery chute. A photoelectric sensor monitors the presence of crown caps and stops machine operation if the necessary closure is not detected.
The crown corking head uses a chute-pickup arrangement, with a single-cam mechanism controlling cap pickup and release. The capping head subsequently applies the crown closure to the compatible bottle finish.
The machine body, doors and capping head are manufactured using AISI 304 stainless steel, while the starwheel and associated guide components use UHMW or Delrin. The bottle conveyor is specified as a stainless steel slat conveyor, and a common motor synchronizes the main machine movements.
Machine protection includes No Bottle–No Crown Cap, starwheel safety clutch, automatic vibrator on-off control and emergency-stop functionality. A variable frequency drive enables operating-speed adjustment, and an inbuilt production counter monitors output.
Optional configurations include a PLC-HMI interface, automatic capping-head height adjustment and a transparent safety cabinet manufactured from toughened glass, polycarbonate or acrylic.
Technogen Enterprise manufactures, supplies and exports automatic single-head crown capping machinery from Ahmedabad, Gujarat, India for manufacturers requiring coordinated crown closure application in suitable bottling lines.
02
Applications
03
Operating Principle
The machine applies crown cork closures using automatic cap feeding, starwheel bottle indexing and a single crown corking head.
Bottle Infeed
Bottles enter the stainless steel slat conveyor and move toward the synchronized starwheel.
Crown Cap Feeding
Crown caps are stored and oriented in the vibratory feeder bowl, then delivered through the cap chute.
Cap Availability MonitoringA photoelectric sensor monitors crown cap availability. The machine stops if a required cap is absent from the delivery chute.
Bottle Positioning
The synchronized starwheel transfers each bottle to the crown capping position.
Crown Cap Pickup
The described chute-pickup and single-cam mechanism coordinates crown cap pickup and release at the bottle.
Crown Corking
The crown capping head mechanically forms the metal crown around the compatible bottle-neck finish.
Bottle Discharge
The sealed bottle advances to the outfeed conveyor, while the production counter records machine output.
Safety Monitoring
The No Bottle–No Crown Cap interlock, starwheel safety clutch and emergency-stop mechanism provide the stated protective functions.
04
Salient Features
Automatic single-head crown capping machine
Crown cork application for compatible beverage bottles
Stainless steel matt-finished machine construction
AISI 304 stainless steel body doors and crown capping head
Automatic bottle transport using stainless steel slat conveyor
Starwheel and guide components manufactured from UHMW or
Delrin Synchronized single-motor conveyor starwheel and capping mechanism
Vibratory bowl feeder for crown cap storage and orientation
Photoelectric sensor for crown cap availability
Automatic machine stop when caps are absent from chute
Chute-pickup crown cap application arrangement
Single-cam cap pickup and release mechanism
Dedicated crown corking head
No Bottle–No Crown Cap operation
Starwheel safety clutch for machine protection
Automatic vibrator feeder on-off control
Emergency-stop machine shutdown
Variable frequency drive for machine speed variation
Inbuilt production counter
Fast changeover using suitable bottle and closure change parts
Specified production rate up to 40 bottles per minute
05
Technical Specifications
Final specifications may vary with container size, product characteristics, selected model and approved configuration.
| Parameter | Specification |
|---|---|
| Model | TGCROWN-50 |
| Machine Name | Automatic Single Head Crown Capping Machine |
| Direction | Left to Right |
| Automation Grade | Automatic |
| Machine Usage | Apply crown caps on glass, plastic and PET bottles such as beer, carbonated beverages, sparkling mineral water and fermenting wine bottles |
| Type of Crown Capping | Shut pickup: single cam controls cap pickup and release |
| Brand | Technogen Enterprise |
| Machine Production Speed | Up to 30–40 bottles/minute depending on bottle diameter |
| Speed Variation | Through Variable Frequency Drive |
| Machine Finish | Stainless Steel Matt Finish |
| Bottle Diameter | 22 mm to 100 mm maximum |
| Bottle Height | 55 mm to 150 mm maximum |
| Crown Cap Diameter | 22 mm to 65 mm, with change parts |
| Crown Cap Height | 15 mm to 18 mm |
| Number of Crown Capping Heads | 1 |
| Type of Crown Capping Head | Crown Corking Head |
| Power Consumption | 1 HP Main Drive; 0.25 HP Cap Feeding Unit |
| Type of Cap Feeder | Vibrator Feeder |
| Electrical Connection | 440 V, 3 Phase, 4 Wire, 50 Hz |
| Control Panel | Bottom pendant-type machine-mounted panel |
| Production Counter | Inbuilt |
| Height of Conveyor from Datum | Adjustable 800 to 850 mm |
| Dimensions (L × W × H) mm | 1830 × 850 × 1500 |
| Change Parts | Required if bottle and cap change |
| Machine Net Weight | 250 kg |
| Machine Gross Weight | 450 kg |
06
Add-On Features
PLC-HMI operator interface Automatic capping head up-and-down system
Toughened glass safety cabinet
Polycarbonate safety cabinet Acrylic safety cabinet
07
Machine Interlocks & Safety Features
No Bottle–No Crown Cap interlock
Photoelectric detection of crown caps at delivery chute Machine stop if no required crown cap is detected
Starwheel safety clutch
Automatic vibrator feeder on-off arrangement
Emergency-stop machine shutdown
08
Applicable Industries
09
Frequently Asked Questions
What is a crown capping machine?
It is a machine that mechanically forms metal crown closures around compatible bottle-neck finishes using a dedicated crown corking head.
What is the production capacity?
The machine is specified for up to 30–40 bottles per minute depending on bottle diameter.
How are crown caps fed into the machine?
A vibratory bowl feeder orients crown caps and delivers them through a chute toward the capping station.
What happens when a crown cap is missing?
A photoelectric sensor detects missing crown caps in the delivery chute and stops machine operation.
What bottle dimensions are specified?
The technical specification lists bottle diameters of 22–100 mm and heights of 55–150 mm. Actual suitability requires the correct crown-compatible bottle-neck finish.
