Automatic Linear Capping Machine
Automatic inline screw capping machine with belt-type bottle gripping, three pairs of tightening discs, clutch protection, minimal bottle change parts and capacity up to 100 bottles per minute.
ISO 9001:2015Ahmedabad, IndiaManufacturer - Exporter

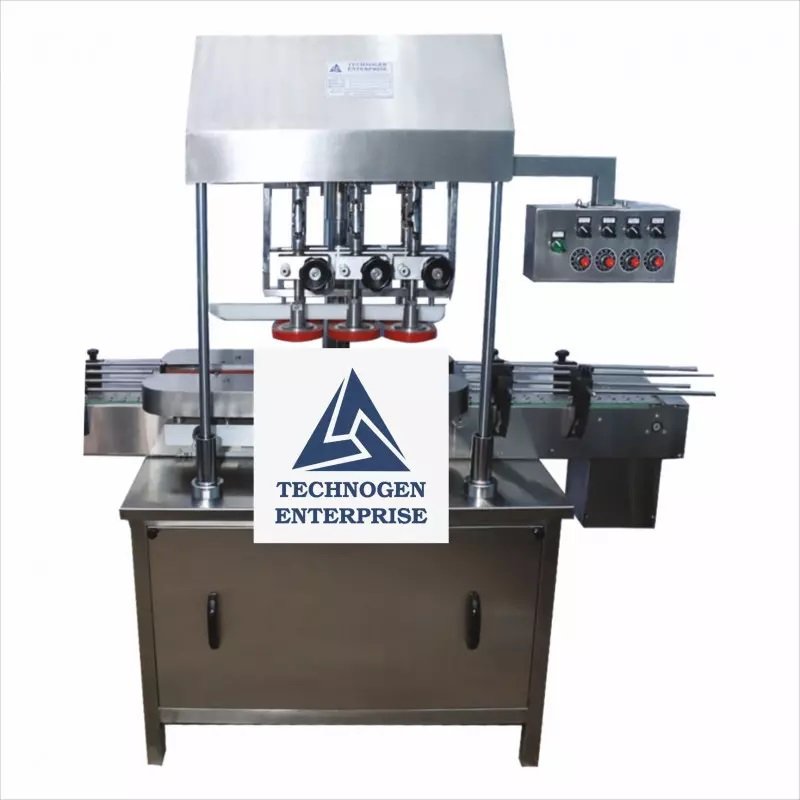

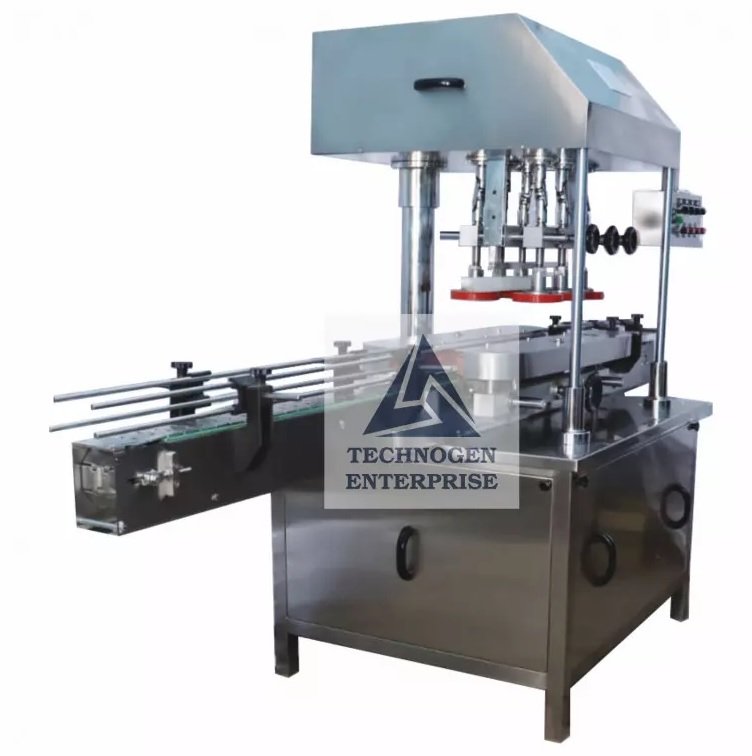

Automatic Linear Capping MachineMachine image shown for reference. Final configuration is selected against the approved application and production requirement.
01
Machine Overview
The Automatic Linear Capping Machine manufactured by Technogen Enterprise is an inline screw-cap tightening system designed for suitable round, flat and irregularly shaped bottles and jars. Unlike rotary starwheel cappers, the machine uses linear bottle transportation and a belt-type gripping assembly to hold containers while threaded closures are tightened.
The machine is equipped with six tightening discs arranged in three opposing pairs. As a bottle travels through the capping zone, the disc arrangement progressively tightens the threaded cap. The tightening assembly includes an adjustable mechanism and built-in clutch protection to reduce the possibility of cap over-rotation.
The specified production speed is up to 100 bottles per minute, depending on the bottle diameter and closure characteristics. Its stated operating ranges include container diameters of 50–200 mm, heights of 75–400 mm, and cap diameters of 18–120 mm.
The tool-less adjustment arrangement allows the conveyor guides, bottle-gripping belts and tightening discs to be configured for different bottle and cap dimensions. This reduces reliance on dedicated starwheel change parts and is particularly useful when packaging multiple bottle formats on the same production line.
The machine can be configured for compatible plastic threaded caps, metal threaded caps, jar closures and selected pump-style closures, subject to cap presentation, geometry and torque requirements. Cap supply may be provided by a vibratory feeder or cap elevator.
The stated machine construction uses stainless steel components, variable frequency drive speed adjustment and a six-digit counter for production monitoring. A No Bottle–No Cap arrangement is described, together with a cap-feeder control function.
Options include PLC-HMI operation and a safety cabinet with door interlock using toughened glass, polycarbonate or acrylic. The system is intended for integration with compatible bottle filling, labeling and packaging equipment.
Technogen Enterprise manufactures, supplies and exports automatic linear screw capping machinery from Ahmedabad, Gujarat, India, serving packaging operations that require fast format changes and a wide range of compatible bottle sizes.
02
Applications
03
Operating Principle
The machine uses a linear conveying system and three pairs of tightening discs to screw caps onto bottles held between the side-gripping belts.
Bottle Infeed
Filled bottles enter the linear slat conveyor and travel toward the gripping and tightening region.
Cap Feeding and Placement
Threaded caps are supplied by the selected cap feeder. Proper cap presentation is required before tightening.
Bottle Side-GrippingA synchronized belt assembly holds the container body during the tightening process, reducing bottle rotation.
First Tightening Disc Pair
The bottle passes through the first opposing disc pair, initiating controlled screw-cap engagement.
Subsequent Disc Pairs
The remaining disc pairs progressively tighten the closure while their adjustment and clutch settings limit excessive rotation.
Capped Bottle Discharge
The bottle exits the gripping system and continues on the conveyor toward downstream packaging equipment.
Speed and Format Adjustment
The variable frequency drive controls speed, while tool-less adjustment of the belts, guides and disc positions accommodates suitable bottle and cap formats.
04
Salient Features
Automatic inline linear screw capping machine
Suitable for compatible round flat and irregular-shaped bottles
Linear conveyor-based container transportation
Bottle holding through synchronized side-gripping belt assemblies
Six cap tightening discs arranged in three opposing pairs
Adjustable tightening disc engagement and position
Built-in clutch arrangement to limit excessive cap rotation
Tool-less adjustment for bottle size changes
Minimal dedicated format change parts for suitable bottle sizes
Compatible with selected plastic and metal threaded caps
Suitable for suitable jar closures and pump-style threaded closures
Cap feeding by vibratory feeder or cap elevator
Variable frequency drive for machine speed variation
Specified output up to 100 bottles per minute
Container diameter range 50 mm to 200 mm
Container height range 75 mm to 400 mm
Cap diameter range 18 mm to 120 mm
Stainless steel machine construction
Inbuilt six-digit production counter
No Bottle–No Cap provision
Cap feeder control in response to cap availability
Optional PLC-HMI and safety enclosure with door interlock
05
Technical Specifications
Final specifications may vary with container size, product characteristics, selected model and approved configuration.
| Parameter | Specification |
|---|---|
| Model | TGLC-100 |
| Machine Name | Automatic Linear Capping Machine |
| Direction | Left to Right |
| Automation Grade | Automatic |
| Machine Usage | Screw capping on glass, plastic, HDPE, LDPE and PET bottles |
| Brand | Technogen Enterprise |
| Operating Direction | Left to write (as specified) |
| Machine Production Speed | 100 bottles per minute depending upon cap and bottle diameter |
| Speed Variation | Through Variable Frequency Drive |
| Cap Feeding | Cap feeder elevator or cap feeder vibrator |
| Bottle Holding | Through belt assembly |
| Number of Cap Tightening Discs | 6 (3 sets of tightening devices) |
| Container Diameter Range | 50 mm to 200 mm |
| Container Height Range | 75 mm to 400 mm |
| Cap Diameter Range | 18 mm to 120 mm |
| Conveyor Height | 850 ± 50 mm from datum |
| Power Consumption | 2 kW |
| Electrical Connection | 440 V, 3 Phase, 4 Wire, 50 Hz |
| Control Panel | AISI 304 bottom pendant-type machine-mounted panel |
| Control Panel (repeated specification) | AISI 304 bottom pendant-type machine-mounted panel |
| Production Counter | Inbuilt 6-digit counter |
| Height of Conveyor from Datum | Adjustable 800 to 850 mm |
| Dimensions (L × W × H) | 1830 × 1230 × 1600 mm |
| Machine Net Weight | 250 kg |
| Machine Gross Weight | 475 kg |
06
Add-On Features
PLC-HMI operator interface
Toughened glass safety cabinet with door interlock
Polycarbonate safety cabinet with door interlock
Acrylic safety cabinet with door interlock
07
Machine Interlocks & Safety Features
No Bottle–No Cap interlock Cap feeder on-off function as specified
Disc clutch arrangement to reduce over-rotation Optional safety cabinet with door interlock
08
Applicable Industries
09
Frequently Asked Questions
How does a linear capping machine tighten caps?
The machine grips bottles between side belts and guides threaded caps through three pairs of rotating tightening discs.
What is the main benefit of linear capping?
Tool-less adjustments and limited bottle-specific change parts make it useful for production lines handling multiple container dimensions.
What output can be achieved?
The specification states up to 100 bottles per minute depending on bottle diameter and cap characteristics.
What bottle and cap sizes are supported?
The stated range covers bottles of 50–200 mm diameter and 75–400 mm height, with caps of 18–120 mm diameter, subject to application suitability.
Are safety enclosures available?
A toughened glass, polycarbonate or acrylic safety enclosure with door interlock is available as an option.
